DNAOS Architecture Overview

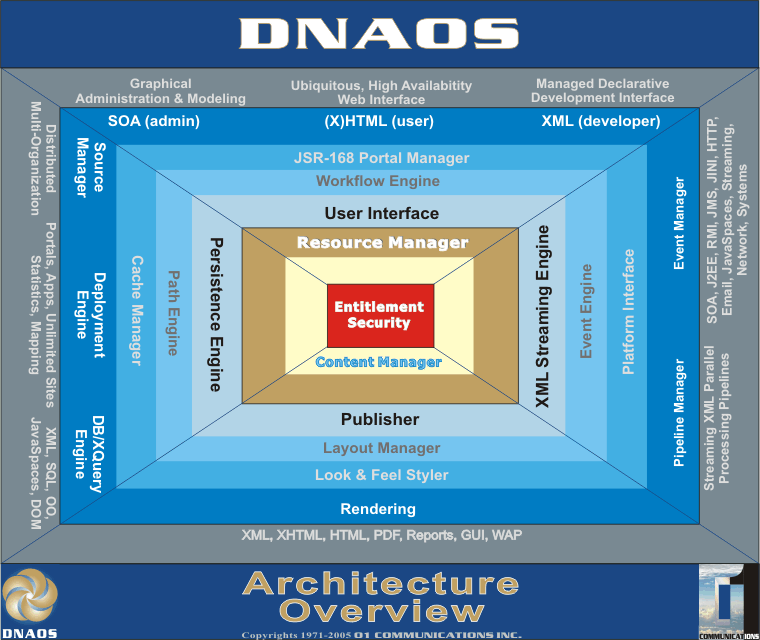

DNAOS Architecture Overview Diagram
The DNAOS SOA architecture is developed around a structured layered kernel offering DNAOS services to application environments. Outer layers of the kernel provide interfaces to typical environments. External processes, like DNAOS REMM SOA clients are not shown in the diagram, although their server interfaces are.
